HP EliteDesk 800 G5 SFF PC


Sold out


Specifications for 7PF04EA

HP EliteDesk 800 G5 SFF PC, i5-9500 3.0GHz, 8GB RAM, 1TB HDD, Intel HD graphics, Win 10 Pro

HP EliteDesk 800 G5 SFF Desktop PC, Intel Core i5-9500 3.0GHz up to 4.4GHz 9MB Cache Six Core Processor with intergrated Intel UHD Graphics 630, 8GB DDR4-2666 DIMM Memory (1x8GB), 1TB 7200rpm SATA Hard Disk Drive, DVD writer Optical Drive, USB Keyboard & Mouse, Windows 10 Pro 64bit, 1x headphone front, 1x headset connector front, 1x USB 2.0 front, 1x USB 2.0 (Fast charging) front, 1x USB Type-C (Charging) Font, 2x USB 3.1 Gen 2 front, 1x audio-in, 1x audio-out, 1x RJ-45, 2x USB 2.0, 2x DisplayPort 1.2, 2x USB 3.1 Gen 1, 2x USB 3.1 Gen 2

Features :

Lead with power and performance

  • Get highly responsive performance with up to a 95W 9th Gen Intel Core processors4, optional Intel Optane Memory H10 with Solid State Storage5, Thunderbolt 6, and high---end discrete graphics.

Expansion that extends your investment

  • The HP EliteDesk 800 SFF has enormous expandability with four bays and four half---height slots. Plus, there are three additional M.2 slots and 11 USB ports all in a compact form factor.

Strong security, powerful manageability

  • Get powerful protection and simplified management from secure and manageable PCs. HP Sure Start Gen52 protects against BIOS attacks while the HP Manageability Integration Kit allows you to easily manage devices.
  • Power through your day with Windows 10 Pro with built---in security, collaboration, and connectivity.
  • Configure a third configurable rear I///O port for customizable display connections with your choice of VGA, DisplayPort, HDMI or USB---Type C with DisplayPort . Or, choose Thunderbolt 3 for high---speed file transfer.
  • Firmware attacks can completely devastate your PC. Stay protected with HP Sure Start Gen5, the self---healing BIOS that automatically recovers itself from attacks or corruption.
  • To get control of your PC, attackers first need to take down its defenses. Keep critical security protections up and running with HP Sure Run Gen2.
  • Help protect your PC from websites and attachments with malware, ransomware, or viruses with hardware---enforced security from HP Sure Click.
  • Advanced malware can seriously disrupt your business. HP Sure Recover Gen2 ensures fast, secure, and automated recovery with only a network connection.
  • Malware is evolving rapidly and traditional antivirus cant always recognize new attacks. Protect your PC against never---before---seen attacks with HP Sure Sense, which uses deep learning AI to provide exceptional protection against advanced malware.
  • Simplify securing your PC. HP Client Security Manager offers a single interface to set up and manage your PCs powerful security features.
  • The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager.
  • Help keep your network and VPN safe from unauthorized access by requiring up to three factors of authentication for log---in --- including optional fingerprint reader and IR camera facial recognition --- with policies hardened at the silicon level.
  • Rest easy with a PC that goes the distance and undergoes 120,000 hours of HPs Total Test Process and MIL---STD 810G testing. Help extend protection with an optional removable dust filter.




Product Code


Series Spec

Available Operating Systems

Windows 10 Pro 64 - HP recommends Windows 10 Pro.

Windows 10 Pro 64 (National Academic only)

Windows 10 Home 64

Windows 10 Home Single Language 64


Processor family

Up to 9th Generation Intel Core i7 processor


Intel Q370 (vPro), Intel Q370 (non-vPro)

Form factor

Small form factor

Maximum memory

128 GB DDR4-2666 SDRAM

Transfer rates up to 2666 MT/s.

Memory slots


Internal storage



Storage acceleration

Supports 16 GB NVMe Intel Optane Memory for storage acceleration

Additional storage

5-in-1 SD card reader

Optical drive

HP 9.5 mm Slim Blu-ray writer, HP 9.5 mm Slim DVD-ROM, HP 9.5 mm Slim DVD-Writer

Available Graphics

Integrated: Intel UHD Graphics 630, Intel UHD Graphics 610

Discrete: NVIDIA GeForce GT 730 (2 GB DDR5 dedicated), AMD Radeon R7 430 Graphics (2 GB GDDR5 dedicated), NVIDIA Quadro P400 (2 GB GDDR5 dedicated)

AMD Radeon RX 550 Graphics (4 GB GDDR5 dedicated)


Conexant CX20632 codec, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable

Expansion slots

1 M.2 2230, 2 M.2 2230/2280, 1 PCIe 3.0 x16, 1 PCIe 3.0 x16 (wired as x4), 2 PCIe 3.0 x1 (1 PCIe M.2 2230 slot for WLAN and 2 PCIe M.2 2230/2280 slot for storage.)

Ports and Connectors

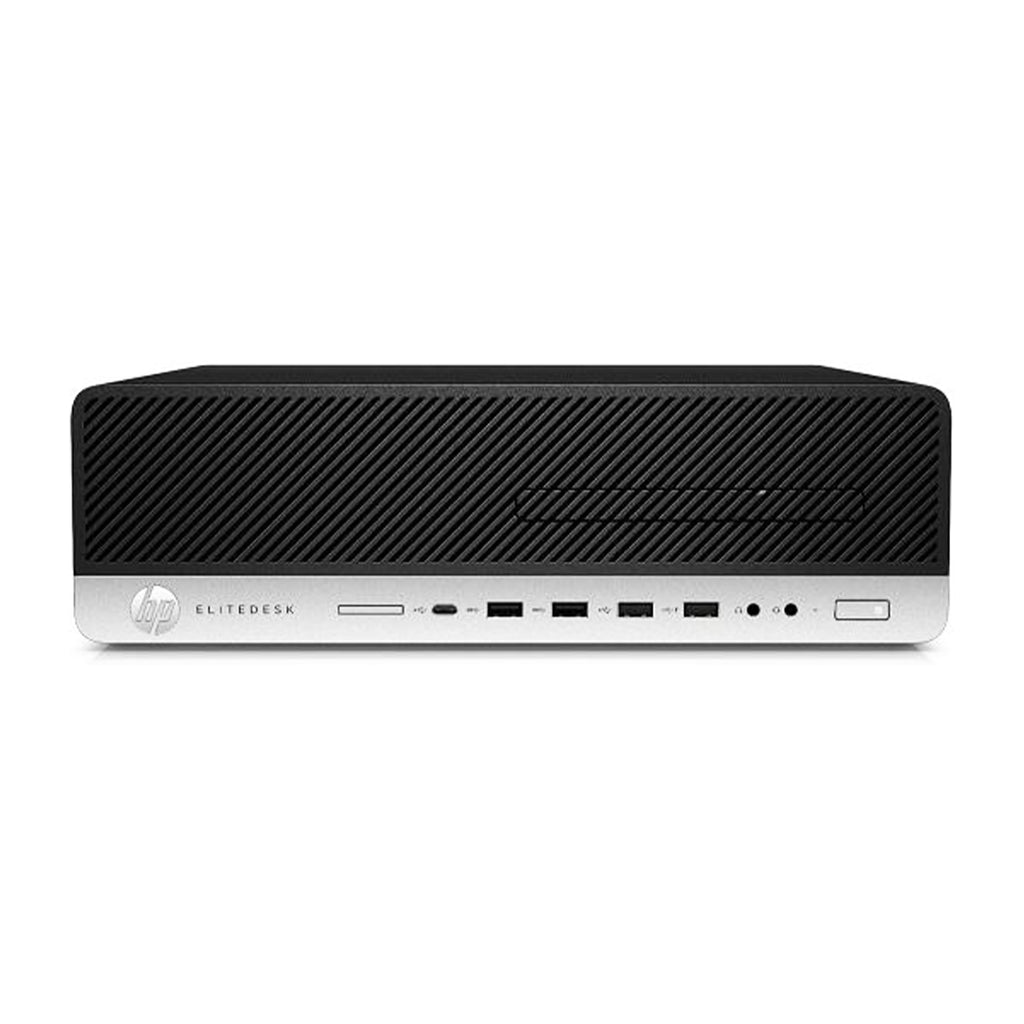

Front: 1 headphone, 1 headset connector, 1 USB 2.0, 1 USB 2.0 (fast charging), 1 USB Type-C (charging), 2 USB 3.1 Gen 2

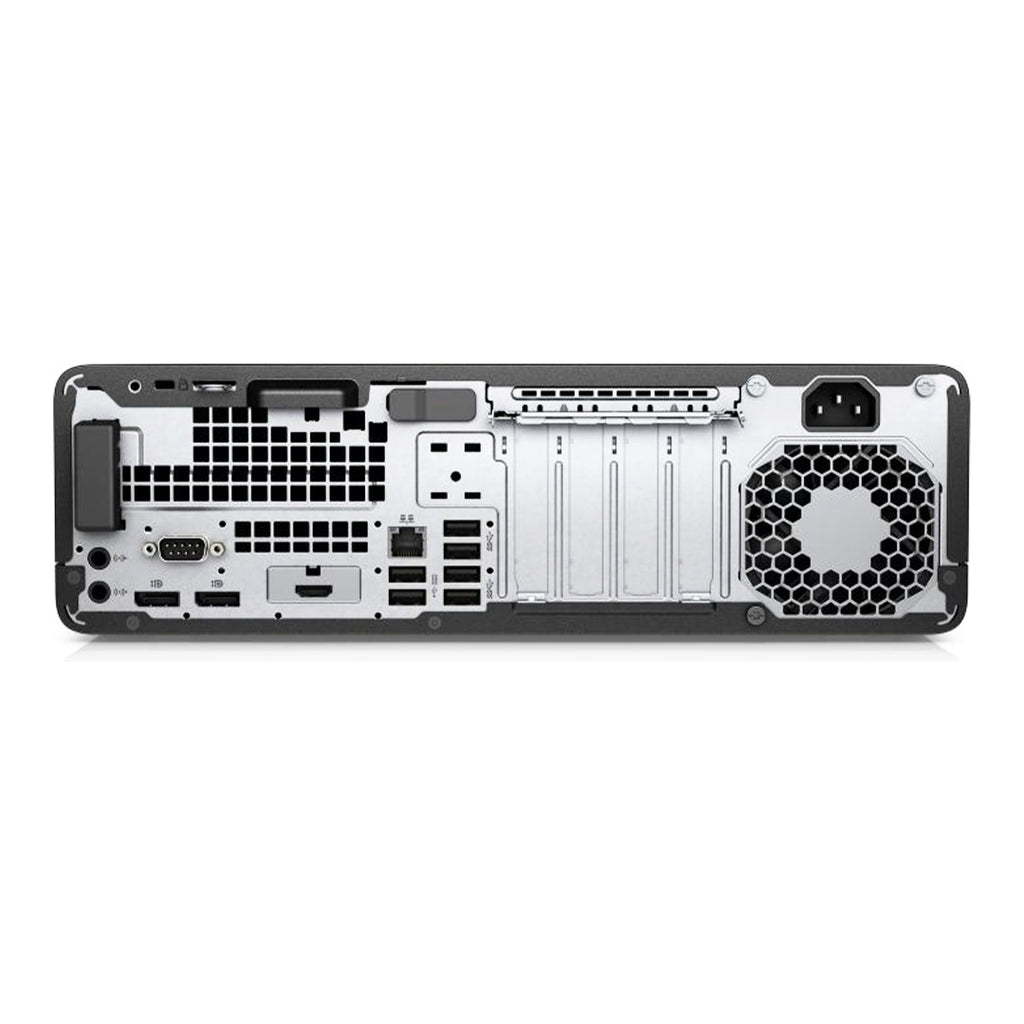

Rear: 1 audio-in, 1 audio-out, 1 power connector, 1 RJ-45, 2 USB 2.0, 2 DisplayPort 1.2, 2 USB 3.1 Gen 1, 2 USB 3.1 Gen 2

Optional: 1 DisplayPort 1.2, 1 HDMI 2.0, 1 serial, 1 serial and PS/2 ports combination, 1 Thunderbolt 3.0, 1 USB 3.1 Type-C Gen 1 (DisplayPort ), 1 VGA

Input devices

HP PS/2 Business Slim Keyboard, HP USB Conferencing Keyboard, HP USB Business Slim Keyboard, HP USB Keyboard, HP USB Premium Keyboard, HP USB Smart Card (CCID) Keyboard, HP Wireless Business Slim Keyboard and Mouse Combo, HP Wireless Collaboration Keyboard, HP USB Business Slim Antimicrobial Keyboard, HP USB Collaboration Keyboard14, HP PS/2 Mouse, HP USB 1000 dpi Laser Mouse, HP USB Antimicrobial Mouse, HP USB Hardened Mouse, HP USB Optical Mouse, HP USB Premium Mouse, HP USB Fingerprint Mouse


LAN: Integrated Intel I219LM GbE LOM, Intel I210-T1 PCIe GbE 16 WLAN: Intel Dual Band Wi-Fi 5 9560 (2x2) and Bluetooth 5 M.2, non-vPro, Intel Dual Band Wi-Fi 5 9560 (2x2) and Bluetooth 5 M.2, vPro, Intel Wi-Fi 6 AX200 (2x2) and Bluetooth M.2 Combo Card non-vPro, Intel Wi-Fi 6 AX200 (2x2) and Bluetooth M.2 Combo Card vPro, Realtek RTL8822BE-CG 802.11a/b/g/n/ac (2x2) with Bluetooth 4.1 M.2 PCIe

Drive Bays

1 slim ODD, One 2.5" HDD, Two 3.5" HDD


Operating temperature: 10 to 35°C, Operating humidity: 10 to 90% RH

Management features

HP BIOS Config Utility (download), HP Client Catalog (download), HP Cloud Recovery, HP Driver Packs (download), HP Management Integration Kit for Microsoft System Center Configuration Management Gen 3, HP System Software Manager (download)


250 W internal power supply, up to 92% efficiency, active PFC


10 x 33.8 x 30.8 cm


6.13 kg (Exact weight depends on configuration.)

Energy efficiency compliance

ENERGY STAR certified, EPEAT 2019 registered where applicable

Environmental specifications

Low halogen
